150LB Forged Titanium Weld Neck Flange Grade 1 Grade 3 ASTM B381

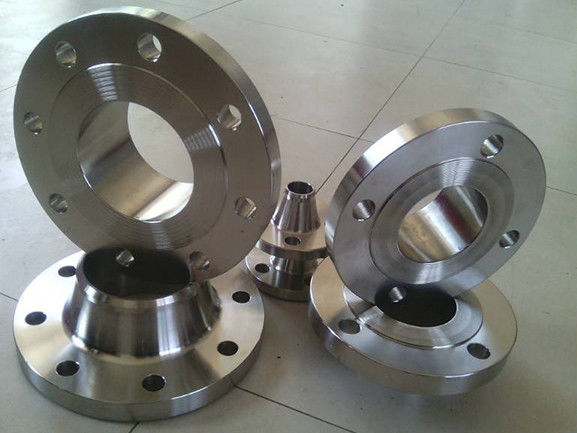

Large Image : 150LB Forged Titanium Weld Neck Flange Grade 1 Grade 3 ASTM B381

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-F-2021007
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	plastic paper inside, plywood case outside
Delivery Time:	5-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 piece/week

Contact Now

Detailed Product Description

Name:	Forged Fittings 150LB ASTM B381 Grade 1 Grade 2 Grade 3 Titaniu	Logo Make:	Accept
Product:	Titanium Flange	Class:	150# 2500#
Standard:	Ansi Bs Din Jis Asme	Material:	Titanium Alloy
Highlight:	150LB Titanium Weld Neck Flange , Grade 3 Titanium Weld Neck Flange , ASTM B381 Forged Weld Neck Flange

Forged Fittings 150LB ASTM B381 Grade 1 Grade 2 Grade 3 Titanium

Custom titanium flange with logo

Available Flange types

a.Slip On Flange

b.Welding Neck Flange

c.Threaded Flange(Screwed Flange)

d.Plain Flange

e.Blind Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. welded flange

i.titanium large-diameter flange

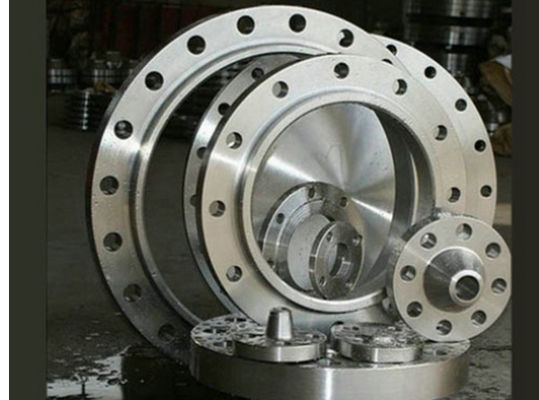

150LB Forged Titanium Weld Neck Flange Grade 1 Grade 3 ASTM B381 0

The application of different grade titanium flange:

Due to the excellent corrosion resistance of titanium material, the pure titanium flange is much used for connecting the tube ends of the petrochemical project. It is also useful in equipment exit and entrance to connect the two devices.

Titanium alloy has the characteristics of light weight, high strength and good corrosion resistance, so titanium alloy flange is often used in oil drilling, marine engineering, machinery and equipment manufacturing industry in the key pressure parts of the connection.

Standard	ANSI B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc.
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes
