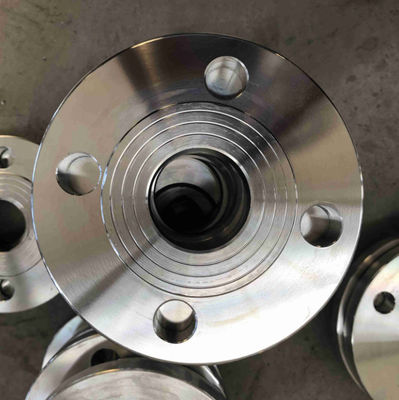

Aeronautic Titanium Weld Neck Flange , F5 Titanium Forged Ring 20mm 50mm Height

Large Image : Aeronautic Titanium Weld Neck Flange , F5 Titanium Forged Ring 20mm 50mm Height

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-F-2021005
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	plastic paper inside, plywood case outside
Delivery Time:	5-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 piece/week

Contact Now

Detailed Product Description

Name:	F5 Titanium Forged Ring B381 20mm 50mm 130mm Aeronautic	Dimension:	O.D.(200-1300mm)
Technique:	Forged Machined Finish	Material:	Gr.5 (Ti6AL4V)
Standard:	ASME SB381 / ASTM B381, AMS 4928	Products:	Flange Titanium Exhaust Pipe Or Parts
Highlight:	20mm Titanium Weld Neck Flange , 50mm Titanium Weld Neck Flange , F5 Titanium Forged Ring

F5 Titanium Forged Ring b381 20mm 50mm 130mm Aeronautic

We produce titanium flanges, and at the same time can supply its matching titanium pipes,

titanium elbows and other accessories

ODM service: custom made service base on your sample or drawing no matter what difficult design, we all can make it for
you as your requirements.

Product name: Grade 5 Titanium Ring

Material Grade: Titanium GR5

Standard: ASME SB381 / ASTM B381, AMS 4928

Size: OD200-1500mm * ID100-1200mm *Height20*600mm

Tecunique: Forged,CNC machined

Application: Electroplating, Chemical engineering & Petrochemical technology, Aviation etc.

Categroy	Grade	Standard	Size(mm)
Categroy	Grade	Standard	OD	ID	Height	Thickness
Ring materials	Gr1.Gr2.Gr4. Gr5.Gr7.Gr9	ASME SB381 / ASTM B381, AMS 4928	200~400	100~300	35~120	40~150
			400~700	150~500	40~160	40~250
			700~900	300~700	50~180	40~300
			900~1300	400~900	70~250	40~400

titanium flange titanium exhaust pipe or parts
Our Advantage:

A1: We have 14 years experience for titanium products making.
A2: Provide third-party quality inspection reports.
A3: ISO9001:2015 certification
A4: 24 hours online service & quickly quote and delivery.
A5: Lower price, good quality and short delivery time.
A6: Sample order is acceptable.
